K Series · Model K5
Imported
BIDUA K5 — Studio+ Capsule
8.5 m studio+ for 2 guests with expanded living area
Dimensions
8500×3200×3200mm
Floor space
27.2m²
Guests
2people
Power
6.7/8.2 kW
Lead time
8–12weeks
Weight
≈7tons
BIDUA Ex-Madurai Price
₹21,70,000+ GST
Indicative unit price — locked-in on order confirmation.
Additional Costs — At Actuals
- Sea freight + customs clearance (origin → Madurai warehouse)at actuals
- Local transport (Madurai warehouse → your site)at actuals
- On-site installation + cranequoted
- GST (18%)as applicable
Import and local transport are passed through at actuals — no BIDUA markup on freight, customs or transport. Costs vary with fuel, exchange rate and shipping conditions; the exact figure is confirmed on your quote.
About the BIDUA K5 — Studio+ Capsule
The BIDUA K5 is a 27.2 m² prefabricated capsule house from our K Series — compact studio capsules. With an overall footprint of 8500×3200×3200 mm it comfortably sleeps 2 guests.
Unlike site-built rooms, the K5 is finished at the factory and placed on a prepared foundation. It weighs about 7 tons and is designed as a relocatable hospitality asset.
Best-fit for
Glamping
Homestay
Resort villa
Mobile hotel
What's included in every BIDUA K5
Standard factory scope is listed below. Freight, taxes, civil work and site connections are quoted separately unless expressly included.
Galvanized steel chassis
Hurricane-grade welded frame with a 20+ year structural service life — the load-bearing shell of the unit.
Insulated shell + LOW-E glazing
Fluorocarbon-painted aluminium skin over ≥50 mm PU insulation, with hollow LOW-E laminated glass for all-season comfort.

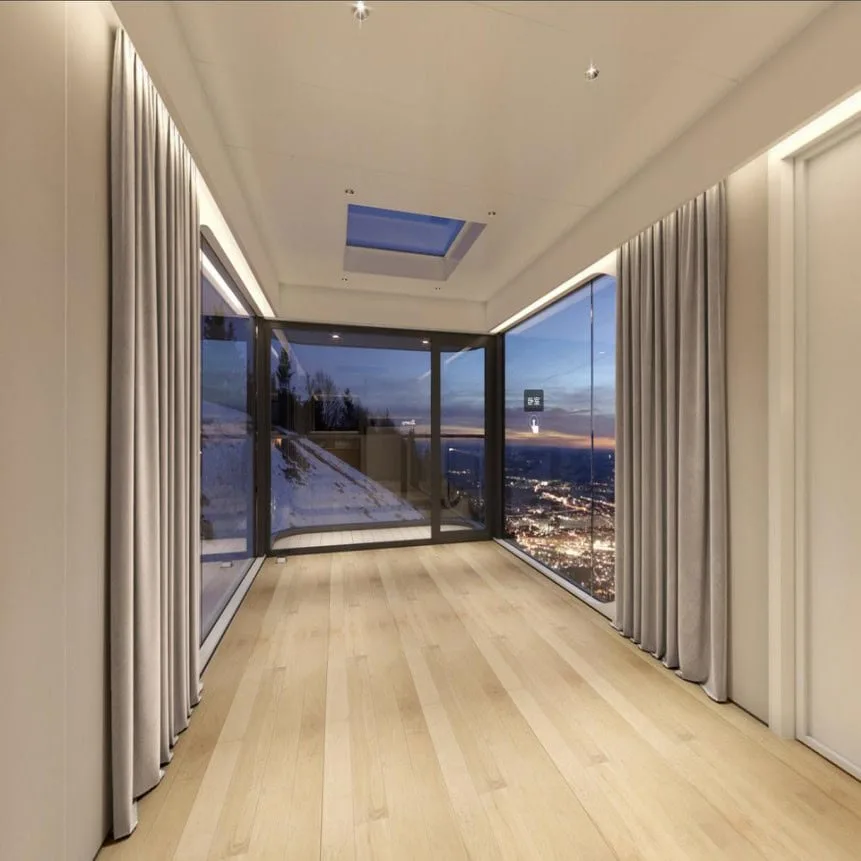

Finished interior
Aluminium / bamboo-charcoal fiberboard panelling, flooring build-up and ceiling — a habitable, move-in interior, not a bare shell.

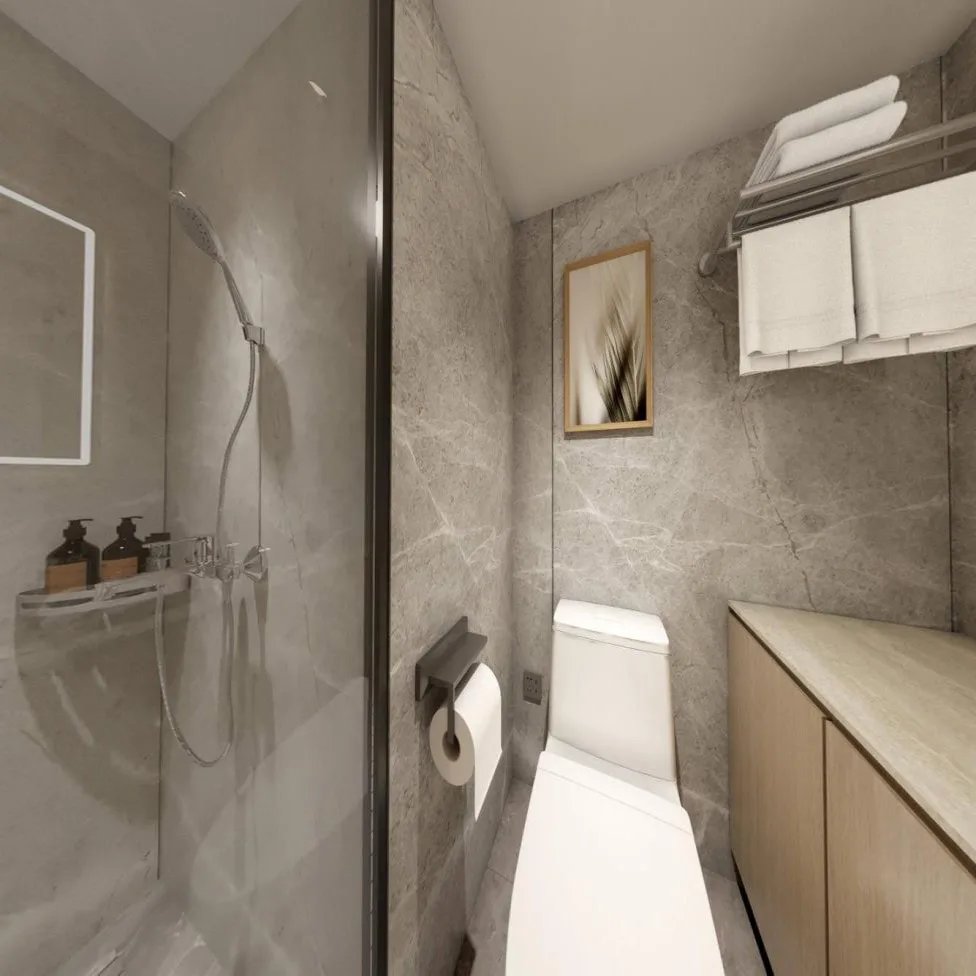

Wet core roughed-in
Bathroom/washroom plumbing rough-in with fittings, plus 230 V electrical wiring and points throughout the unit.
Smart-home hub
App-driven one-tap control of climate, lighting and motorized privacy curtains through a single integrated hub.
Doors, windows & fixtures
Stainless-steel entry door, aluminium-alloy window frames and standard interior fixtures fitted at the factory.
Why BIDUA Capsule Houses
One-stop luxury living
Fully designed and factory-finished. Saves you the trouble of on-site renovation and interior fit-out — arrive, connect utilities, move in.
Distinctive aesthetic
A shape reminiscent of a dream spaceship — visually striking, brand-worthy for hospitality and glamping ventures.
Minimalist smart control
App-driven — one-tap climate, lighting and privacy control. Everything runs through a single smart-home hub.
Diversified use
From tourist hotspots and remote vacations to event accommodations, homestays, corporate retreats and Airbnb ventures.
Environmentally friendly
Sustainable steel + eco-materials build. Modular, relocatable and reusable — no permanent site scarring.
Configuration

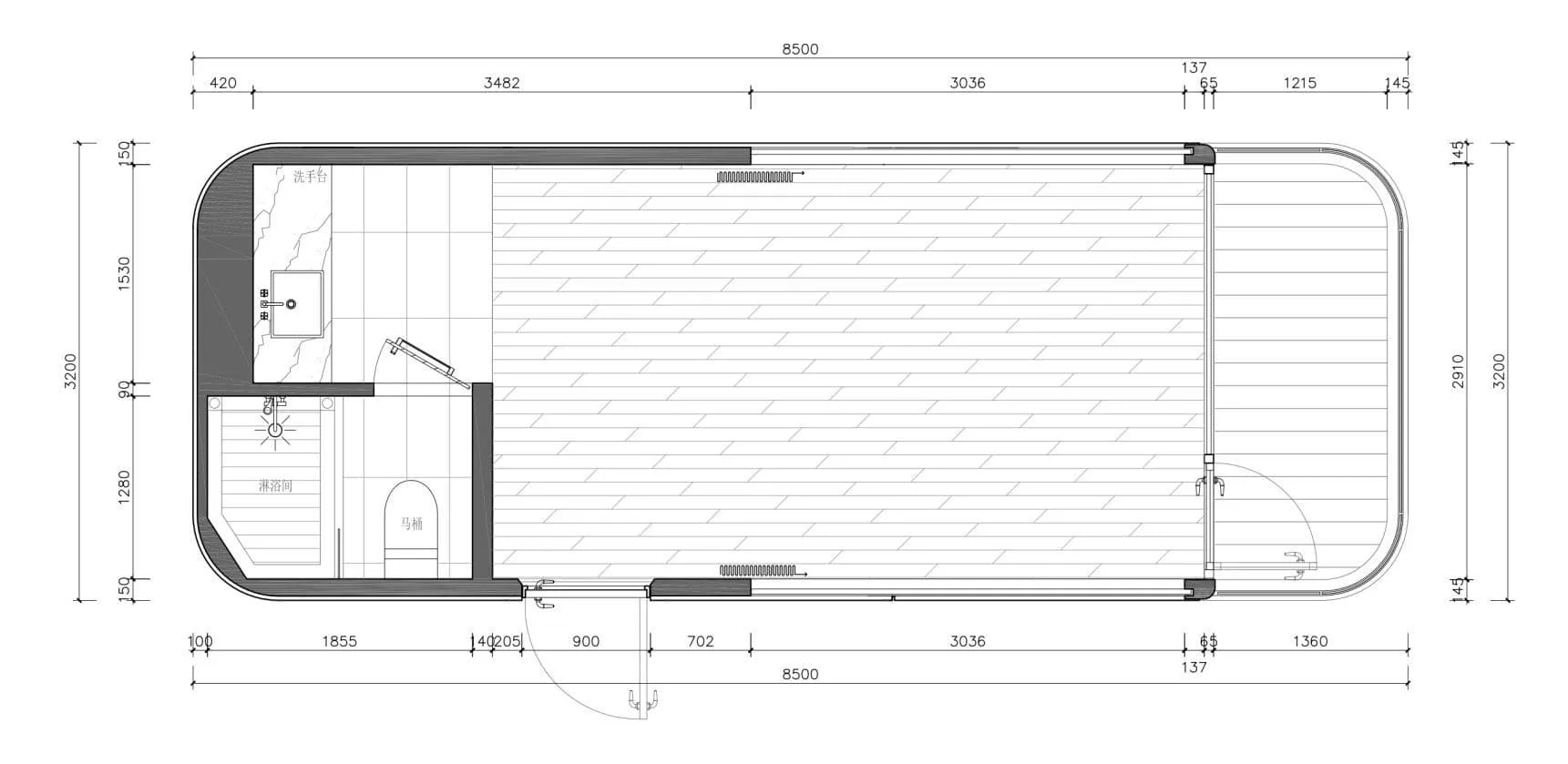

- Dimensions (L × W × H)
- 8500×3200×3200 mm
- Floor space
- 27.2 m²
- Guests
- 2
- Power (std/max)
- 6.7/8.2 kW
- Net weight
- ≈ 7 tons
- Lead time
- 8–12 weeks
Other K Series models
Interested in the BIDUA K5?
Talk to our team — we handle design, sourcing, customs and install.
WhatsApp for K5 Quote
